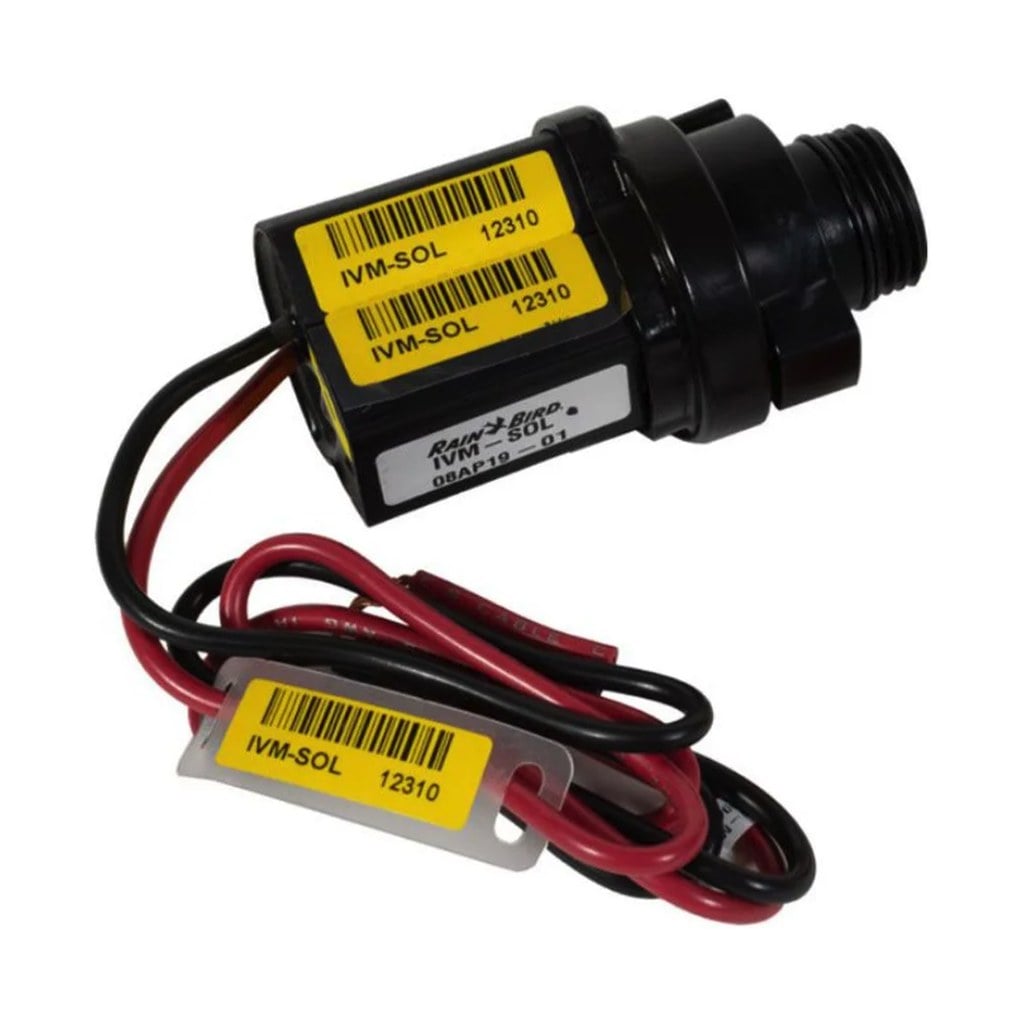

Rain Bird LX IVM-SOL 2-Wire Solenoid Suit PGA, PEB, PESB, BPE Series Valves

• Compatible with the PGA, PEB, PESB, BPES and EFB-CP Rainbird Valves

• 1 Solenoid

• 2 WC20 connectors

• 2 Wire-Nuts

• 1 White Solenoid Seal

Features & Benefits

• Field Devices are installed along the 2-Wire path to interface with valves and other hardware.

• Interfaces with LX-IVM to control station valves and master valves

• Rain Bird WC20 connectors (included with IVMSOL) to be used for all splices

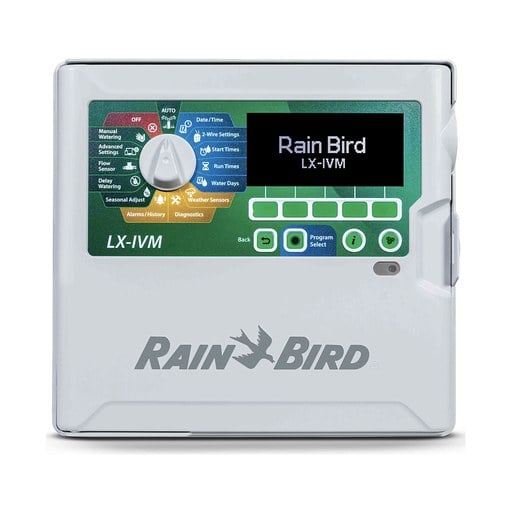

This product can be used in conjunction with the ESP-LXIVM Series Controllers and its respective ESP-LXIVM 2-Wire Field Devices. These devices (sold separately) include the:

• IVM-SOL: Control station or master valves

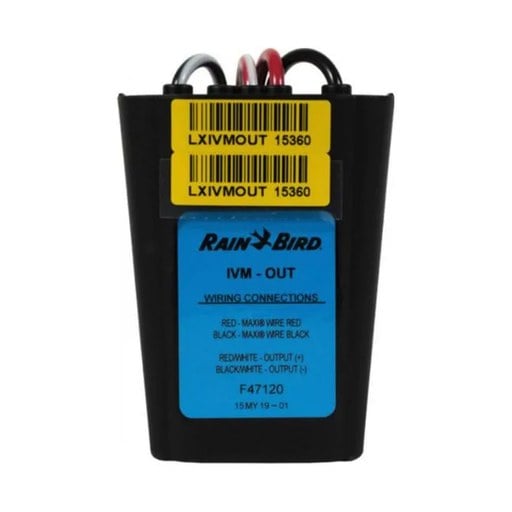

• IVM-OUT: Interfaces with LX-IVM to manage 3rd party valves and external gear such as pump stations

• IVM-SEN: Interfaces with LX-IVM to control weather sensors or flow sensors

• IVM-SD: provides surge protection on the 2-Wire path

Product Details

IVM-SOL Installation

1. Use pressure sprayer to clean equipment

2. Check that O-rings are free from damage or debris

3. Attach IVM-SOL hand-tight (with no water pressure)

Note:It's normal to hear a brief ratcheting sound during installation of the IVM-SOL on valve.

Use IVM-SOL to connect valves on the 2-Wire path.

1. Connect the red and black wires on the IVM-SOL to the 2-Wire Path

2. For future troubleshooting or modifications, it is recommended to leave an additional 3 feet (1 meter) of 2-Wire cable stored in each valve box location.

Note: If the valve is NOT at the end of the 2-Wire Path then make a three-way splice; the red wire from the IVM-SOL to the two red wires of the 2-Wire Path; then splice the IVM-SOL black wire to the two black wires of the 2-Wire Path. Use only WC20 splice kits for all wiring connections to the 2-Wire Path. Improper wiring can cause serious damage to your controller or irrigation system.
