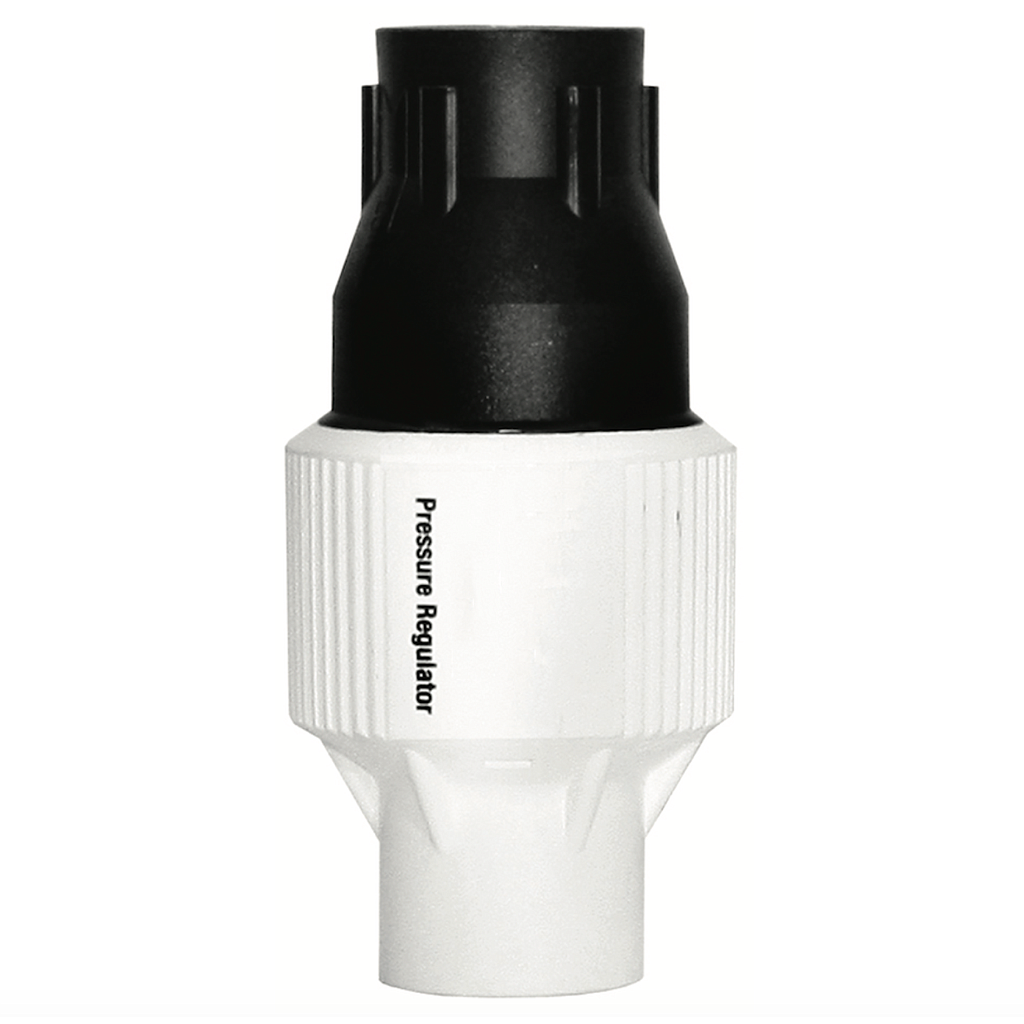

Senninger Pressure Reducer PSR30

    32.62 Inc.
    32.620000000000005 AUD


    Option not available

    or 4 interest-free payments of 8.16 with Learn More

    This combination does not exist.

    Brand: Senninger

     $9.95 Postage on Irrigation | Free For $200+
     Secure Checkout & Payment
     Australia-Wide Shipping


    A water pressure regulator is a device that works like an automatic valve to limit higher pressure to a desired constant lower pressure. An in-line pressure regulator contains a hollow cylindrical housing with a centrally-mounted stationary seat near the inlet. Inside is a movable tubular stem (throttling stem or t-stem) surrounded by a spring with a diaphragm attached near the downstream end. The diaphragm and O-rings isolate the spring to keep it dry. Water flows through the inlet, around the seat and through the t-stem. Water pressure acting on the diaphragm forces the spring to compress, pushing the t-stem toward the seat. The closing of the area between the seat and the t-stem reduces the water pressure on the diaphragm. The balance between the force on the diaphragm and spring resistance establishes the outlet pressure. Senninger uses springs with different compressive loads to deliver various preset water pressures from 6 to 60 psi (0.41 to 4.14 bar).
