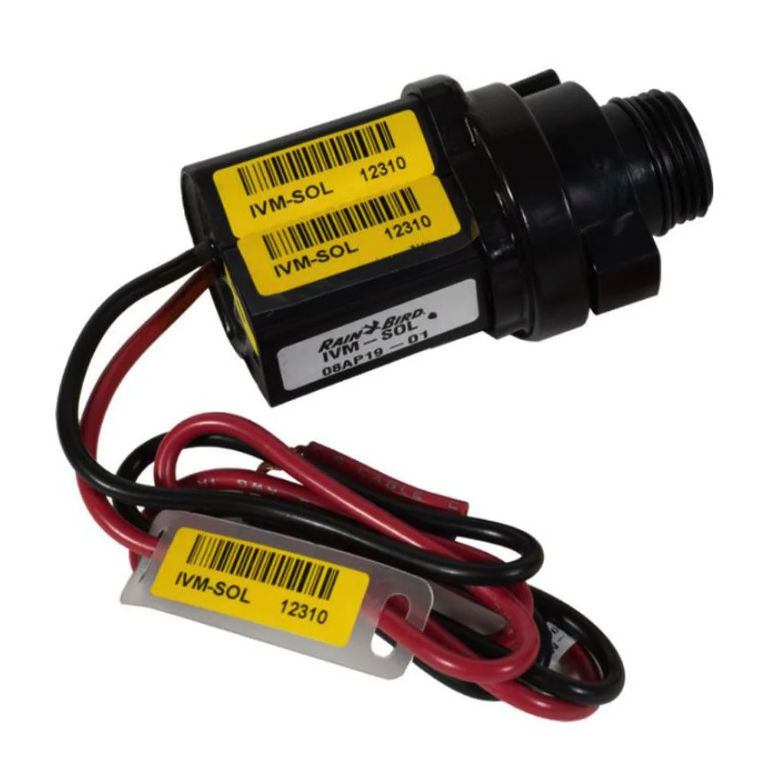

  3. Rain Bird LX IVM-SOL 2-Wire Solenoid Suit PGA, PEB, PESB, BPE Series Valves
Retail Price
Rain Bird LX IVM-SOL 2-Wire Solenoid Suit PGA, PEB, PESB, BPE Series Valves

Rain Bird LX IVM-SOL 2-Wire Solenoid Suit PGA, PEB, PESB, BPE Series Valves

https://www.waterpro.com.au/web/image/product.template/26266/image_1920?unique=2c4c480
(0 review)

$ 332.76 366.04 AUD $ 332.76 Tax Included

$ 1.00 Tax Included

Not Available For Sale

This combination does not exist.

Brand :Unspecified
Contact Us

  •  Safe, Secure Payment

Share

  • Compatible with the PGA, PEB, PESB, BPES and EFB-CP Rainbird Valves

  • 1 Solenoid

  • 2 WC20 connectors

  • 2 Wire-Nuts

  • 1 White Solenoid Seal

Features & Benefits

  • Field Devices are installed along the 2-Wire path to interface with valves and other hardware.

  • Interfaces with LX-IVM to control station valves and master valves

  • Rain Bird WC20 connectors (included with IVMSOL) to be used for all splices

This product can be used in conjunction with the ESP-LXIVM Series Controllers and its respective ESP-LXIVM 2-Wire Field Devices. These devices (sold separately) include the:

  • IVM-SOL: Control station or master valves

  • IVM-OUT: Interfaces with LX-IVM to manage 3rd party valves and external gear such as pump stations

  • IVM-SEN: Interfaces with LX-IVM to control weather sensors or flow sensors

  • IVM-SD: provides surge protection on the 2-Wire path

Product Details

IVM-SOL Installation

  1. Use pressure sprayer to clean equipment

  2. Check that O-rings are free from damage or debris

  3. Attach IVM-SOL hand-tight (with no water pressure)


Note:It's normal to hear a brief ratcheting sound during installation of the IVM-SOL on valve.

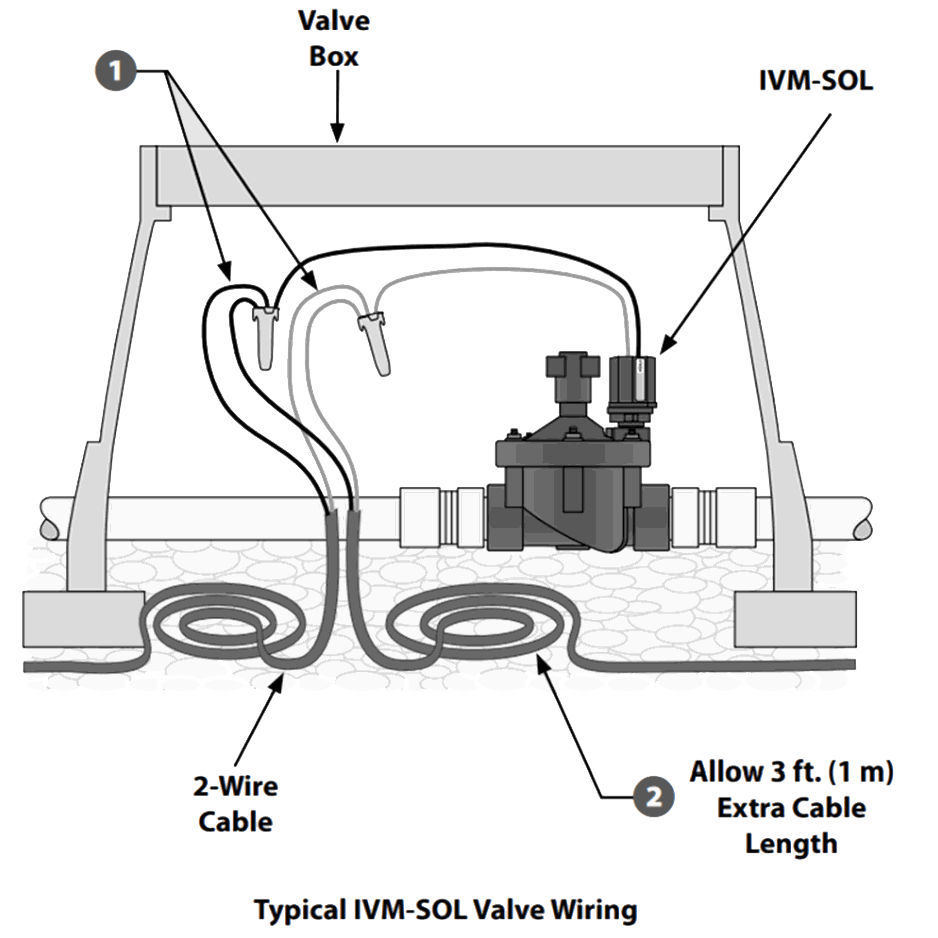

Use IVM-SOL to connect valves on the 2-Wire path.

  1. Connect the red and black wires on the IVM-SOL to the 2-Wire Path

  2. For future troubleshooting or modifications, it is recommended to leave an additional 3 feet (1 meter) of 2-Wire cable stored in each valve box location.


Note: If the valve is NOT at the end of the 2-Wire Path then make a three-way splice; the red wire from the IVM-SOL to the two red wires of the 2-Wire Path; then splice the IVM-SOL black wire to the two black wires of the 2-Wire Path. Use only WC20 splice kits for all wiring connections to the 2-Wire Path. Improper wiring can cause serious damage to your controller or irrigation system.
