Reliable Battery-Operated Control without the Need of an Electrical Connection
For isolated sites, power-restricted areas, or the special needs of drip zones, the Hunter Node is the smart, reliable solution. The Node mounts to a valve solenoid quickly and easily, and without screws, drills or additional wires. The unit's solid construction and waterproof exterior ensure it can handle the harsh environment of a valve box. Once placed in a valve box, the Node is operated by one or two 9V batteries, which provide standard or extended power throughout the season. Along with exceptional reliability, the Node features an easy-to-program LCD screen, the ability to control a Master Valve, and uses standard Hunter controller programming with 3 programs and 4 start times per program. The array of programming options and rugged reliability make the Node a compact, but powerful irrigation controller with the flexibility of battery power.

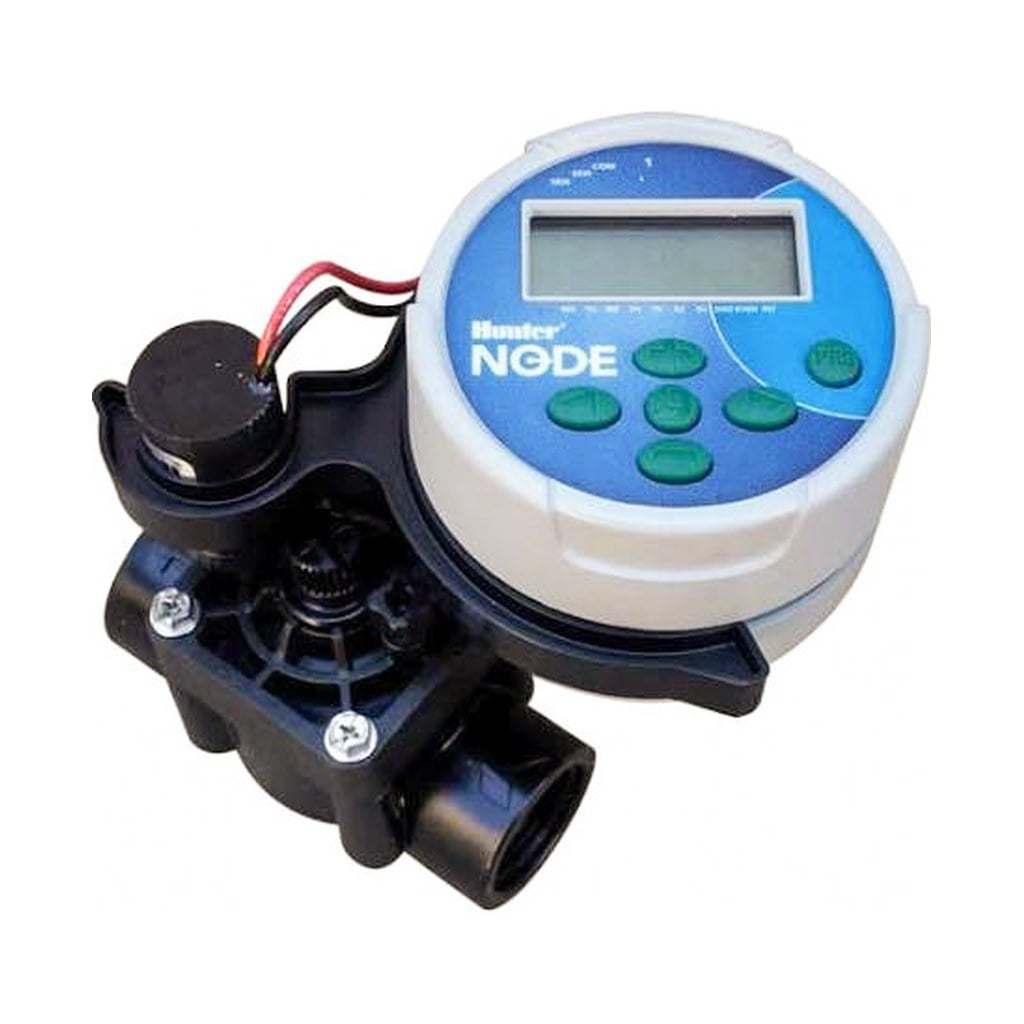

NODE-100-VALVE-B Single station controller with PGV-101G-B valve and DC latching solenoid (BSP threads)
Features
• Battery powered
• Type: Fixed
• Number of stations: 1, 2, 4, 6
• Enclosure: Outdoor
• Independent programs: 3
• Start times per program: 4
• Max. station run time: 6 hrs
• Master Valve operation (available in 2, 4, 6 station models)
• Solar Panel Kit (SPNODE) Provide maintenance free operation
• Solenoid wire length up to 30 m (18 AWG)
• Programmable Off
• Manual Cycle
• Warranty period: 2 years
Specifications
• Operates DC latching solenoids only (P/N 458200)
• Pump/master valve
• Sensor inputs: 1
• Operating temperature: -18º C to 66º C
• Power source: 9-volt battery (up to two) or Solar Panel
• IP68, CE
NODE -100-VALVEB (BSP THREAD)
Diameter: 8.9 cm
Height: 6.4 cm
