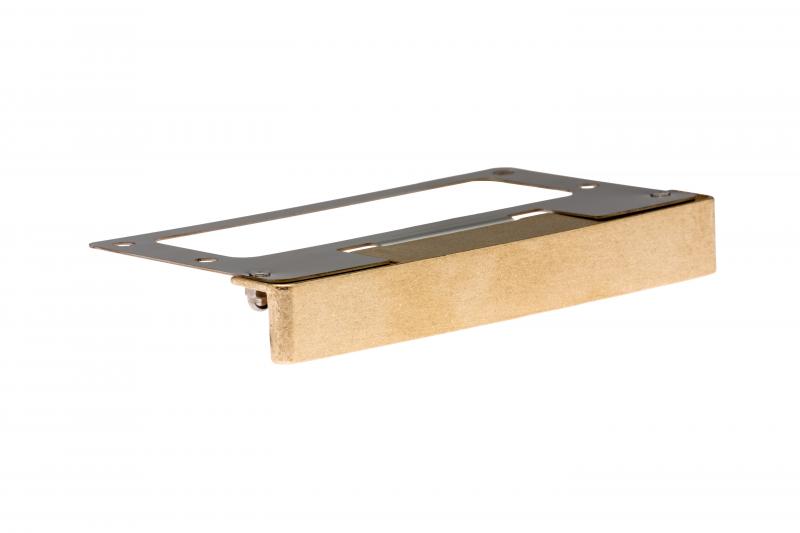

The LF is our LED under-the-cap hardscape wall light. It can easily be fitted between a block wall and capstone for a neat, clean installation. Due to its modular bracket design, the LF can even be installed under railings and existing construction.
Quick Facts
Die-cast brass housing
Lumileds Integrated LEDs
Phase and PWM dimmable
Brass finish
Compatible with Luxor technology
Input Voltage: 10V - 15V
Hunter FX Luminaire LF LED Wall Light 3.6W RGB-W Brass Install Sheet
| Output | ZDC | ||
|---|---|---|---|
| Total Lumens† | 34 | ||
| Input Voltage | 11 to 15V | ||
| Input Power | 3.6 W | ||
| Power Consumption (VA) | 4.3 W | ||
| Efficacy (lm/W) | 21 | ||
| Color Rendering Index (CRI) | 80+ | ||
| Dimming | PWM, Phase** | ||
| Max Candela | No | ||
| Luxor Compatibility | 17.1 | ||
| Default | Zoning | ||
| ZD Option | Zoning/Dimming/Colour | ||
| ZDC Option | -- | ||
| Minimum Rated Life L70 (Hrs) | 55,000 |
