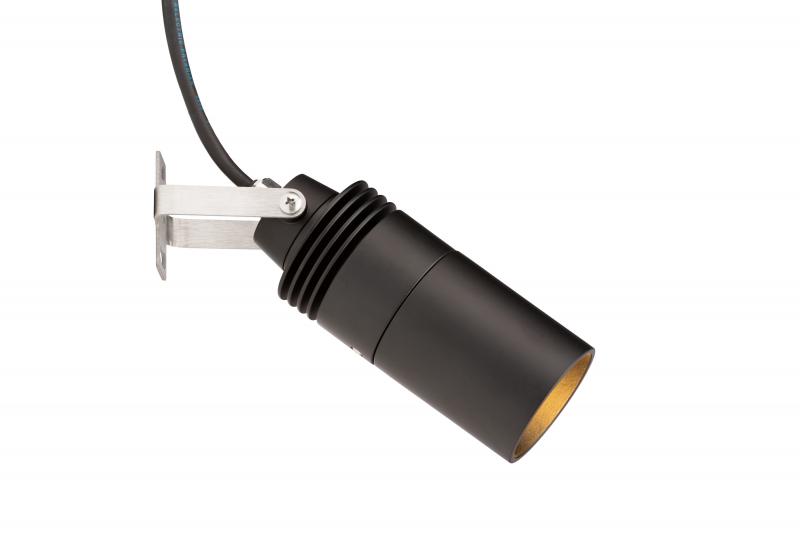

The JB is FX Luminaire’s original LED Down Light. The JB solves the problem of changing lamps in complicated areas by providing long-life LEDs. The pure colour of the LED allows you to add the supplied blue lens to create a natural moonlight effect.
Quick Facts
Die-cast aluminum
Lumileds Integrated LEDs
Beam angle lenses
Phase and PWM dimmable
Two-layer marine-grade anodisation and powder coat finish
ProAim adjustability
Compatible with Luxor technology
Input Voltage: 10V - 15V
Hunter FX Luminaire JB LED Down Light 6W RGB-W Black Install Sheet
| Output | ZDC | ||
|---|---|---|---|
| Total Lumens† | 62 | ||
| Input Voltage | 11 to 15V | ||
| Input Power | 6.0 W | ||
| Power Consumption (VA) | 7.2 W | ||
| Efficacy (lm/W) | 20 | ||
| Color Rendering Index (CRI) | 80+ | ||
| Center Beam Candlepower* | |||
| Wide Flood (60) | 114 | ||
| Dimming | |||
| Primary Dimming (Transformer) | Consult transformer specifications | ||
| Secondary Dimming (Fixture) | Luxor | ||
| RGBW Available | Yes | ||
| Luxor Compatibility | |||
| Default | -- | ||
| ZD Option | -- | ||
| ZDC Option | Zoning/Dimming/Colour | ||
| Minimum Rated Life L70 (Hrs) | 55,000 | ||
