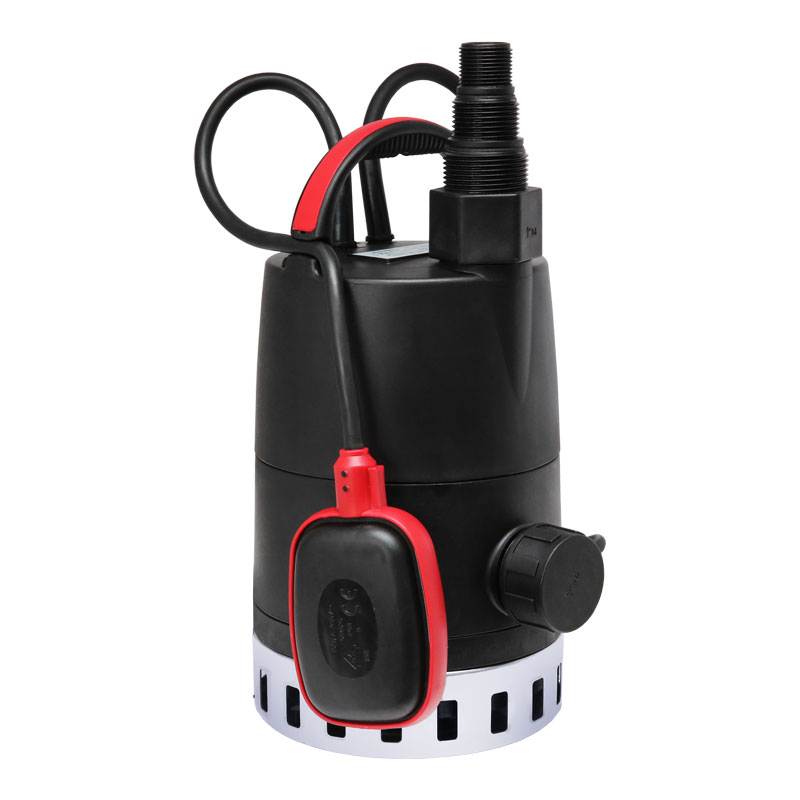

The UNILIFT CC is a lightweight single-stage drainagepump with a semi-open impeller. They are designed forpumping drain water and grey wastewater containingparticles up to a size of up to 10 mm. The suction strainerat the bottom of the pump prevents particles larger thanthe pump is designed for from entering. The strainer ismade of stainless steel, while the main pump parts, e.g.the sleeve and pump housing, are made of mouldedcomposite materials.
The UNILIFT CC can pump down toa water level of 3 mm above the floor by removing thestrainer and can be used in permanent installations oras a portable pump.
Applications
Domestic wastewater
Features and benefits
Prevention of backflow - The pump is supplied with an adapter and a non-return valve to prevent backflow through the pump when it stops.
Robust design - The materials of the pump ensure excellent corrosion resistance. Furthermore, the CC 7 and 9 have a built in V-ring mechanical shaft seal which offers wear resistance and a long operating life.
Thermal overload protection - The single-phase version is effectively protected against any accidental overload, by built-in thermal protection. This means that no additional motor protection is required. Auto-restart In case the motor cuts out due to thermal overload, the motor automatically starts again when it has cooled to normal temperature.
Handy and easily transportable - The light weight of the pump and the carry handle mounted on the housing make it handy and easily transportable.
Automatic operation- The pump has a float switch for automatic on/off operation between two liquid levels.
Specifications
Product name | UNILIFT CC9 - A1 |
Product No | 96280970 |
EAN number | 5700830761403 |
Technical | |
---|---|
Max flow | 3.89 l/s |
Head max | 9 m |
Maximum particle size | 10 mm |
Materials | |
---|---|
Pump housing | PP 15 GF |
Impeller | PPOm 20 GF |
Installation | |
---|---|
Pump outlet | R 1 1/4 |
Maximum installation depth | 10 m |
Liquid | |
---|---|
Pumped liquid | Any Newtonian liquid |
Liquid temperature range | 0 .. 40 °C |
Density | 998.2 kg/m³ |
Electrical data | |
---|---|
Mains frequency | 50 Hz |
Rated voltage | 1 x 220-240 V |
Rated current | 3.5 A |
Capacitor size - run | 8 µF/450 V |
Enclosure class (IEC 34-5) | IP68 |
Insulation class (IEC 85) | B |
Motor protec | YES |
Length of cable | 10 m |
Type of cable plug | SCHUKO |
Controls | |
---|---|
Level switch | float switch |
Others | |
---|---|
Net weight | 6.79 kg |
Gross weight | 7.55 kg |
Shipping volume | 0.017 m³ |
Danish VVS No. | 391280391 |
Swedish RSK No. | 5885926 |
Norwegian NRF no. | 9045642 |
