Grundfos UPS(N) pumps are the ideal choice for a wide range of domestic and commercial applications. The UPS(N) pumps are 3-speed wet rotor circulators and come in a wide range of materials and sizes. They feature an integrated pump and motor design ensuring greater ease of installation and durability. Maintenance free and whisper-quiet, these pumps are ideal for a variety of domestic and commercial heating and cooling systems.
Specifications

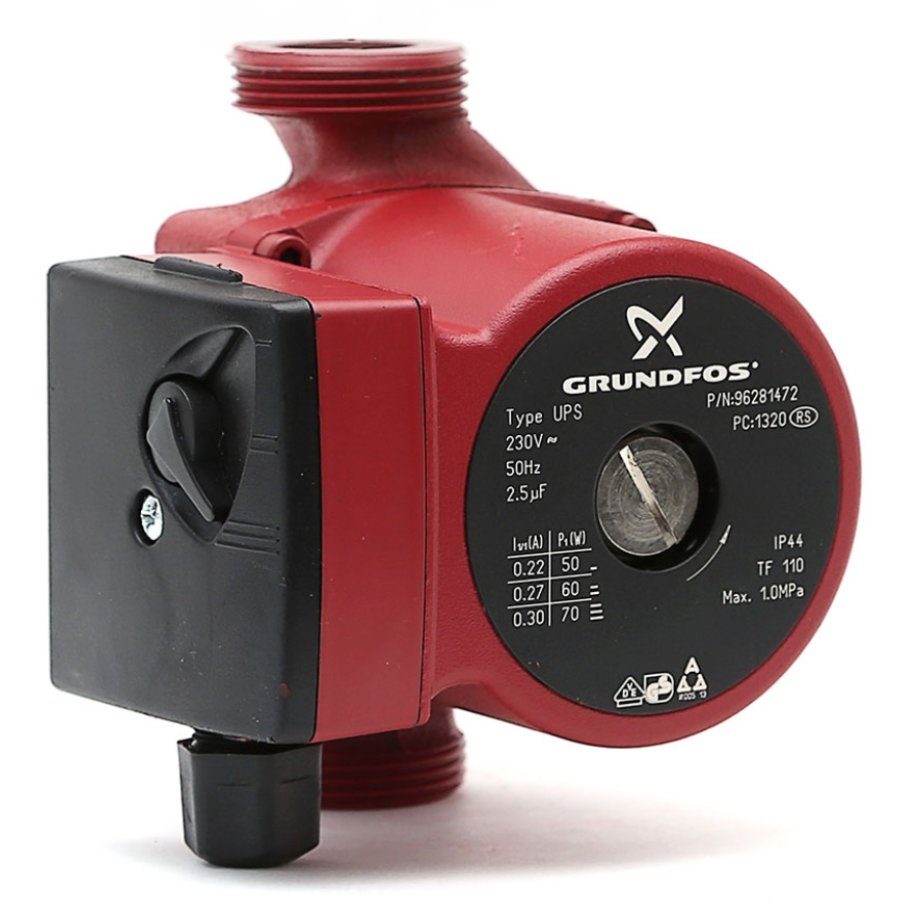

| Product name: | UPS 20-60 N 150 |
| Product No: | 96913096 |
| EAN number: | 5700313543779 |
| Technical | |
|---|---|
| Speed no: | 3 |
| Head max: | 60 dm |
| TF class: | 110 |
| Approvals on nameplate: | CE,EAC,WEEE |
| Materials | |
|---|---|
| Pump housing: | Stainless steel |
| Pump housing: | DIN W.-Nr. 1.4301 |
| Impeller: | Composite, PES/PP |
| Installation | |
|---|---|
| Amb. max at 80 dgr C liquid: | 80 °C |
| Maximum operating pressure: | 10 bar |
| Pipe connection: | G 1 1/4 |
| Pressure rating: | PN 10 |
| Port-to-port length: | 150 mm |
| Liquid | |
|---|---|
| Pumped liquid: | Water |
| Liquid temperature range: | 2 .. 110 °C |
| Selected liquid temperature: | 60 °C |
| Density: | 983.2 kg/m³ |
| Electrical data | |
|---|---|
| Power input in speed 1: | 35 W |
| Power input in speed 2: | 60 W |
| Max. power input: | 90 W |
| Mains frequency: | 50 Hz |
| Rated voltage: | 1 x 240 V |
| Current in speed 1: | 0.15 A |
| Current in speed 2: | 0.25 A |
| Current in speed 3: | 0.37 A |
| Capacitor size - run: | 2 µF |
| Enclosure class (IEC 34-5): | IP44 |
| Insulation class (IEC 85): | H |
| Motor protec: | NONE |
| Thermal protec: | Impedance protected |
| Controls | |
|---|---|
| Pos term box: | 9H |
| Others | |
|---|---|
| Net weight: | 2.8 kg |
| Gross weight: | 3 kg |
| Shipping volume: | 0.004 m³ |
